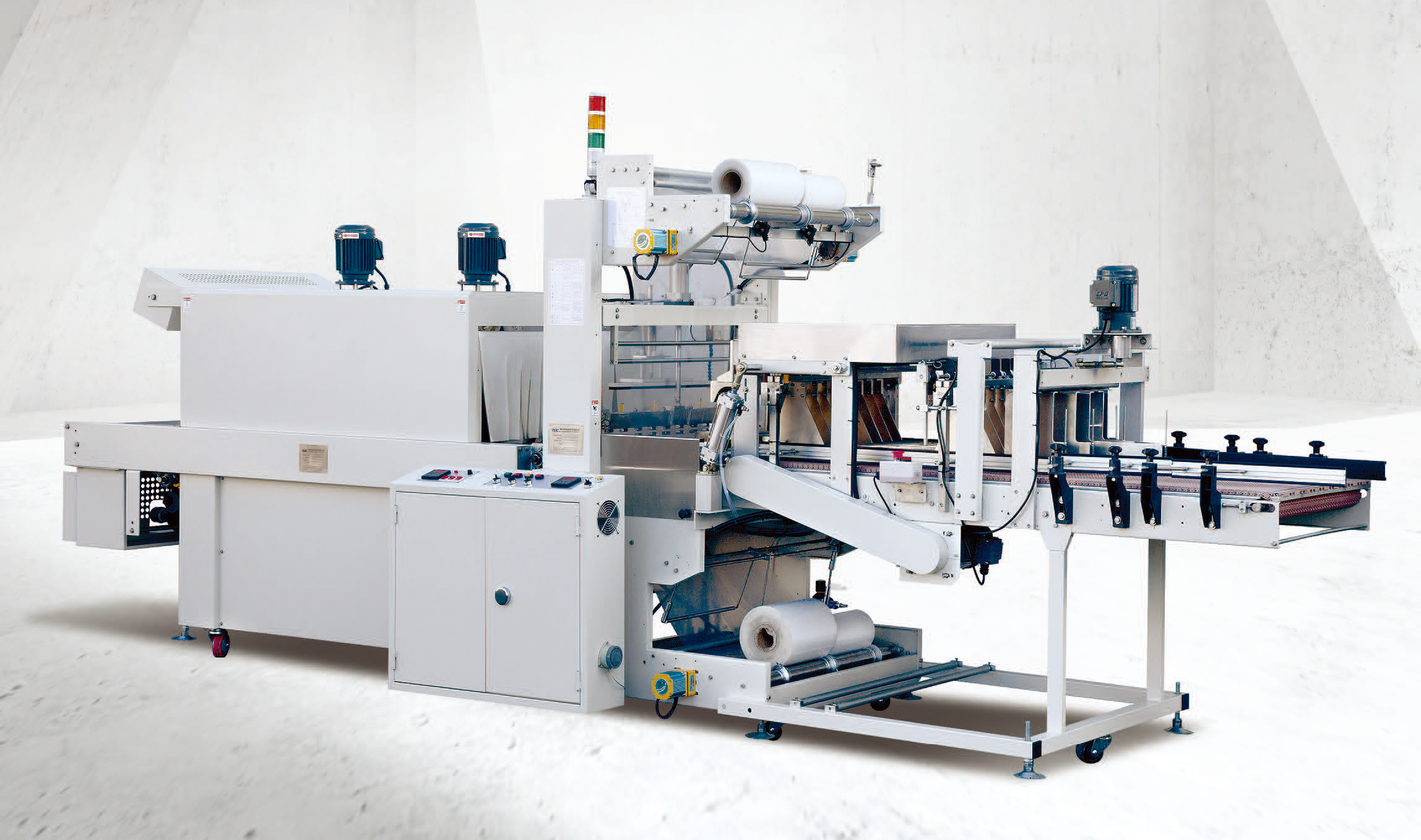

FAC-207 / FAC-209
Multiple Shrink Packaging Machine
(Printed or Transparent Shrinkable Film is Capable)
Sleeve-type dual-side sealing packaging system, suitable for production lines operating at 150–200 BPM.
Special Instructions
- The machine height can be customized to match the production line’s working height. Standard working height is 750mm or 900mm. If the line height exceeds this, the machine can be adjusted accordingly.
- The position of the control box can be configured based on the production line layout.
- For packaging formats such as 1x2, 1x3, 3x4, 2x4, 2x5, or PET bottles, optional components can be added as needed.
- Product infeed can be enhanced with an optional agitation mechanism.
- The upper shrink film is color-printed on the surface; the lower film is transparent. (Color film packaging is optional.)
- Six or eight-lane infeed design enables two-pack push at a time.
- Features an HMI display interface that is intuitive and user-friendly.
- Digital temperature controller allows precise setting and adjustment of sealing temperature.
Features
- Compatible with both transparent and color-printed shrink film with registration marks.
- This machine supports PE printed film packaging, enhancing product value and shelf appeal.

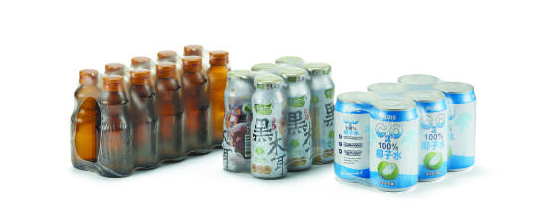

- Diverse packaging formats meet the demands of modern retail and wholesale markets.
- High packaging speed, seamlessly integrates with production lines.
- Maintains product integrity, saves energy, and boosts profitability.
- Heat shrink tunnel provides uniform thermal radiation. Conveyor driven by small rollers ensures durability and stability.
- Equipped with airflow guidance system inside the shrink tunnel, ensuring smooth and attractive shrink finish regardless of film type.
- Adjustable conveyor speed with variable frequency drive and automatic temperature control for easy operation.

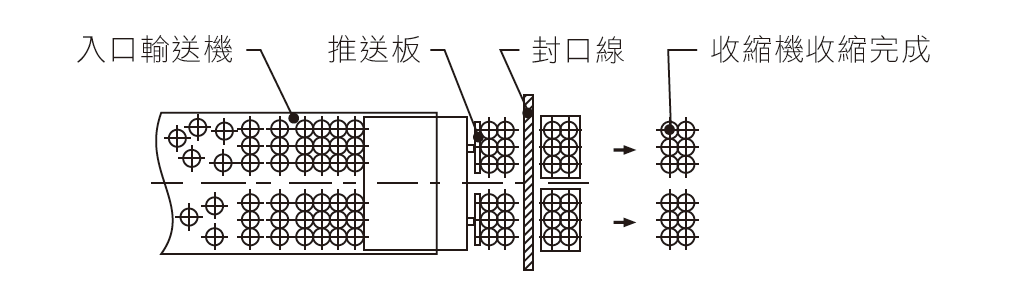

Packaging Flow Chart

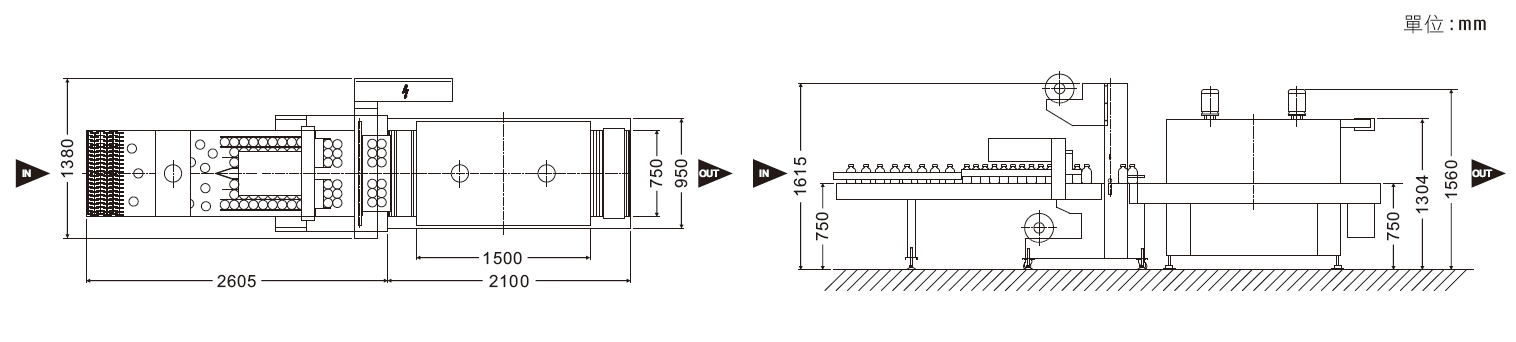

Machine Dimensions
Machine Specs
◎ Packaging speed depends on product size, packaging style, and the stability of the product on the conveyor.
◎ Machine dimensions are for reference only; please refer to the actual design.
FM Series Shrink Wrapper / Features
- Digital temperature controller allows for more precise adjustment of the tunnel temperature.
- Preserves product quality, saves energy, and increases profitability.
- The shrink tunnel uses a circulation fan motor for even hot air distribution. Conveyor is roller-driven, durable, and speed adjustable.
- Rollers are sleeved with heat-resistant silicone rubber or fiberglass tubing to prevent film from sticking.
FM Series Shrink Wrapper / Specifications
◎ If the model number ends with an "L", it indicates the internal oven length is extended by 300mm, resulting in an overall machine length increase of 300mm.
◎ If the model number ends with an "S", it indicates the outlet side plate is extended by 300mm for enhanced cooling, resulting in an overall machine length increase of 300mm.
