FY-STCH Series
Automatic Stretch Wrapping Machine

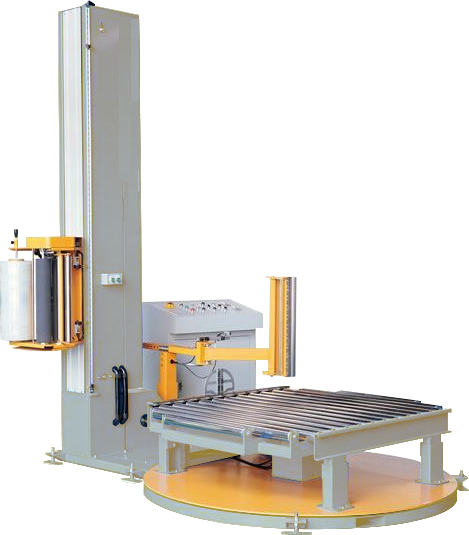

The FY-STCH Automatic Stretch Wrapping Machine
features automatic film clamping, wrapping, heated wire cutting, and brush smoothing to firmly apply the film to the pallet. Once wrapping is completed, no manual cutting is required.
The turntable includes soft start/stop functions to ensure safety, and the wrapping speed and film overlap range can be adjusted.
features automatic film clamping, wrapping, heated wire cutting, and brush smoothing to firmly apply the film to the pallet. Once wrapping is completed, no manual cutting is required.
The turntable includes soft start/stop functions to ensure safety, and the wrapping speed and film overlap range can be adjusted.
Features
- Manual or automatic film operation modes available.
- Applicable pallet size: L1100–1200 x W1100–1200mm
- Control system: PLC-controlled
- Stretch film specification: PE film, Outer diameter: 76mm, Inner diameter: 250mm, Width: 500mm
- Film thickness: 17–35 microns
